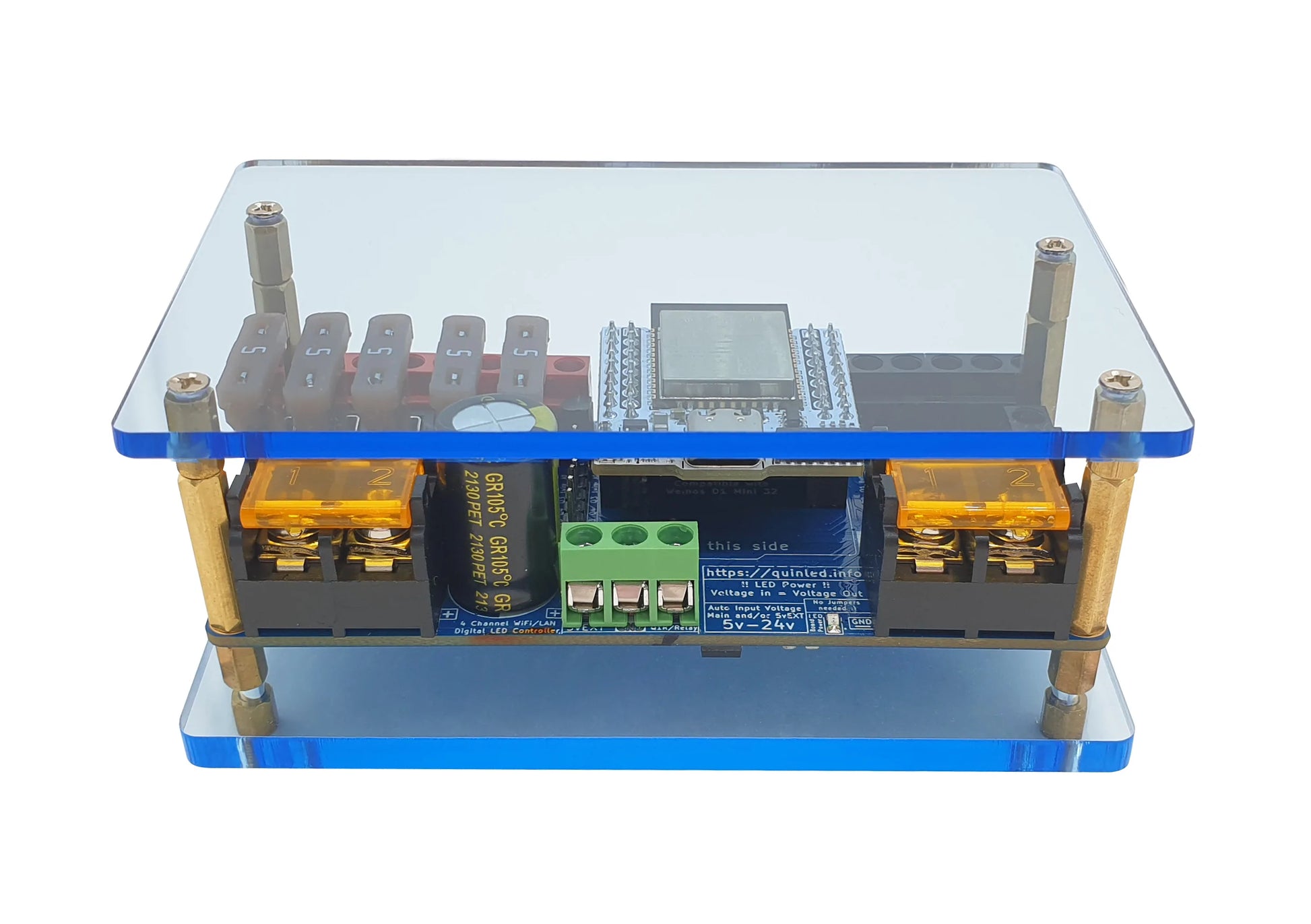

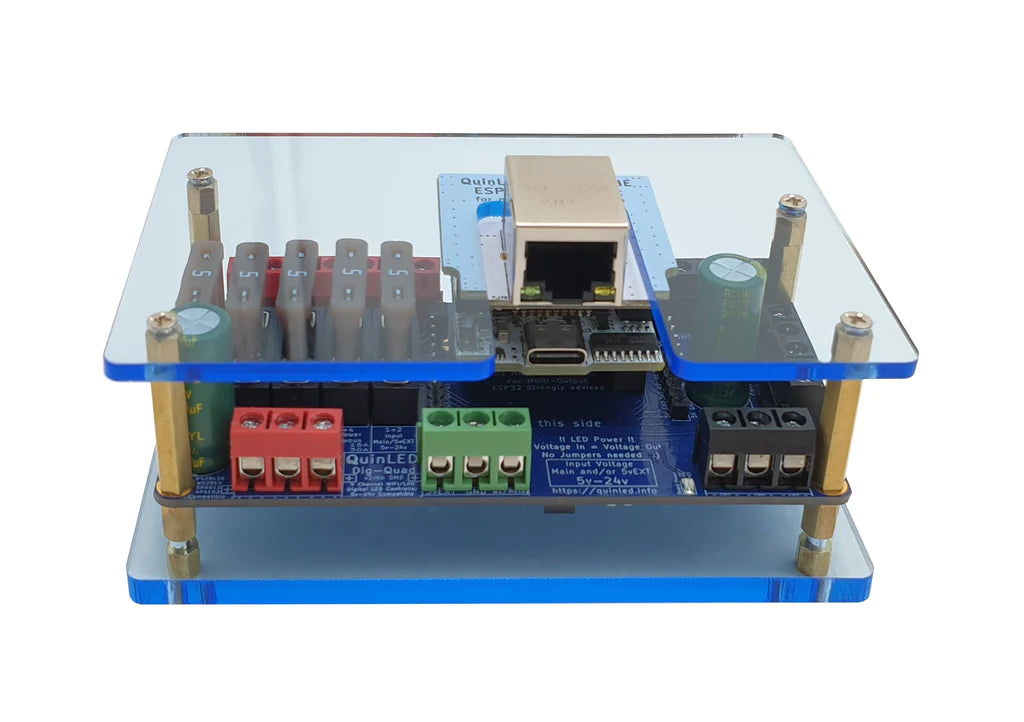

QuinLED Dig Quad v3 With Acrylic case

QuinLED Dig Quad perfectly integrates into your home automation or performs as a stand alone solution!

Technical details:

• QuinLED ESP32 based programmable LED controller with 4 independent output channels
• Compatible to open firmware e.g. ESPhome, ESPpixelstick or custom Arduino code
• Integrates with MQTT or Home Assistant native API (use WLED FW)
• Remote control available via Android or iOS app (WLED FW)
• Can be used for E1.31 with Xlights /Vixen software (use WLED or ESPpixelstick FW)
• High current handling (up to 30A)
• On-board 5x 5A fuse and reverse polarity protection
• Compatible to 5V*, 12V**, 24V*** LED strips, strings or panels
• On-board DS18B20 temperature sensor
• 6 GPIO pins (e.g. Audio, PS Relay, IR control or I2C display)
• Works with most currently available LED strips/strings or panels*

* ws2811, ws2812b, sk6812, APA102

**ws2811, ws2815

***ws2811, sk6812, tm1814

Product content:

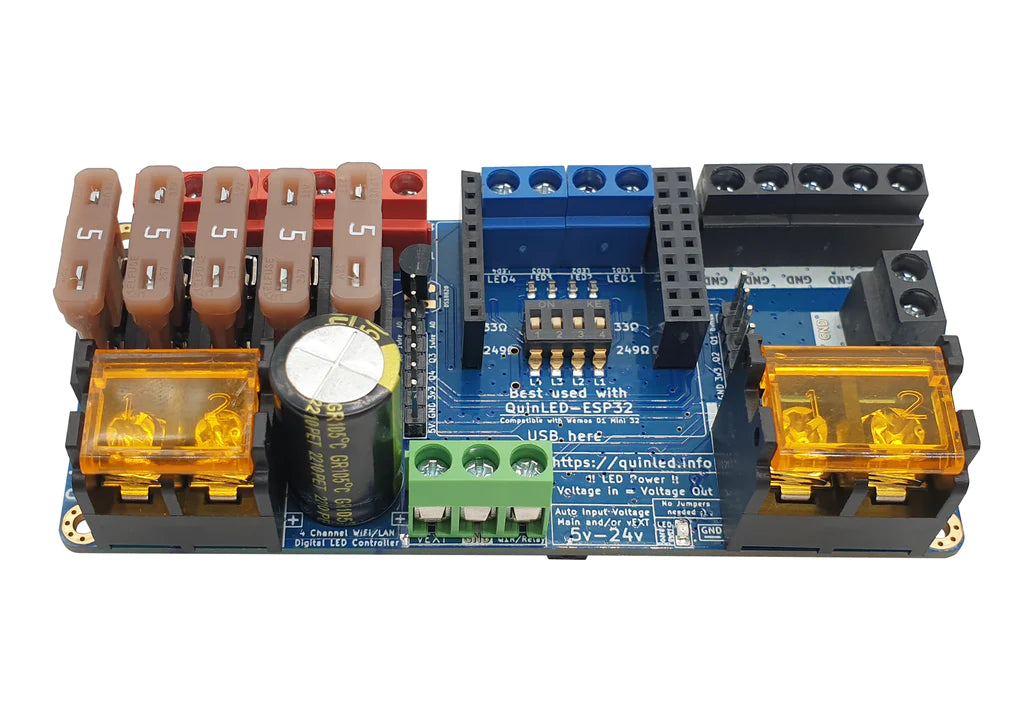

• QuinLED Dig Quad LED controller board

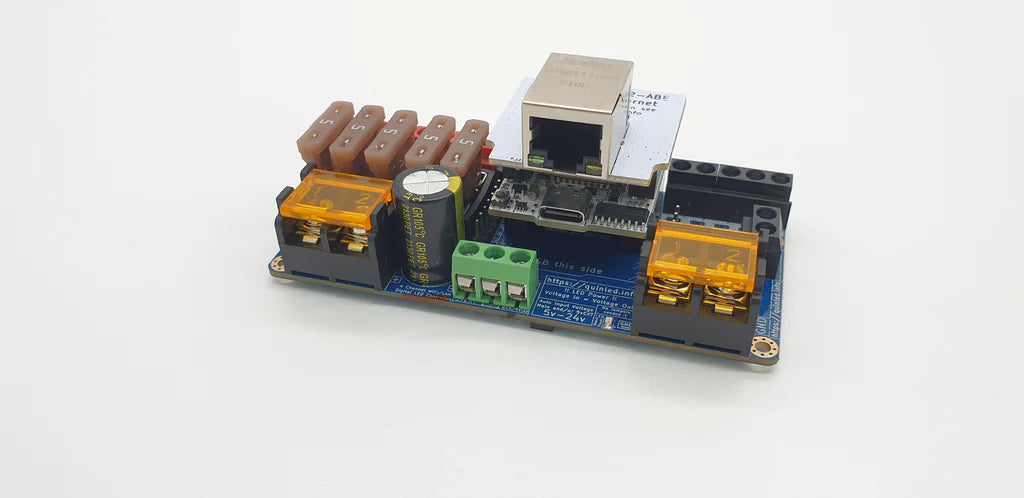

• QuinLED ESP32 WIFI module with USB-C interface (2 different variants available)
• 5x 5A fuses
• NEW - bigger screw terminals for easier cable management
• Pre flashed WLED firmware for instant use

OUTSTANDING!

• With a few simple steps to a working system
• Easy to use and at the same time ready for complex setups
• Extremely detailed library and resources
• Very supportive community and developer
• You have a question to LED and LED related applications - go QuinLED

Youtube introduction and instructions (click on the text):

• QuinLED-Dig-Quad introduction
• QuinLED-Dig-Quad Specification page
• WLED setup tutorial (also phone app)

• QuinLED-Dig-Uno /WLED  Home Assistant integration

• Showcase for various LED effects

• Introduction on different types of LED strip, string and panels


More details and resources here:

• In depth information on LEDs

• Wiring diagrams, articles, simply everything related to LEDs

• @ https://quinled.info
