Square Type Null Pixel
Square Type Null Pixel
Couldn't load pickup availability

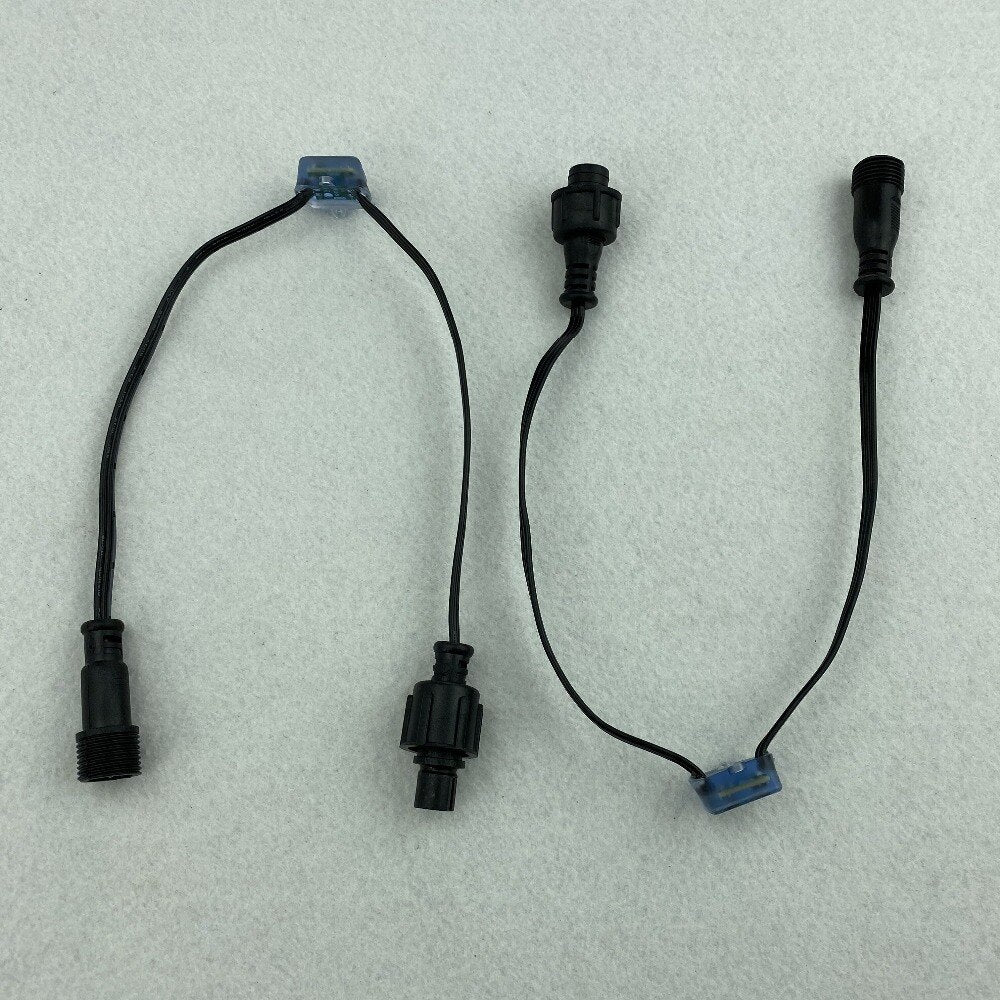

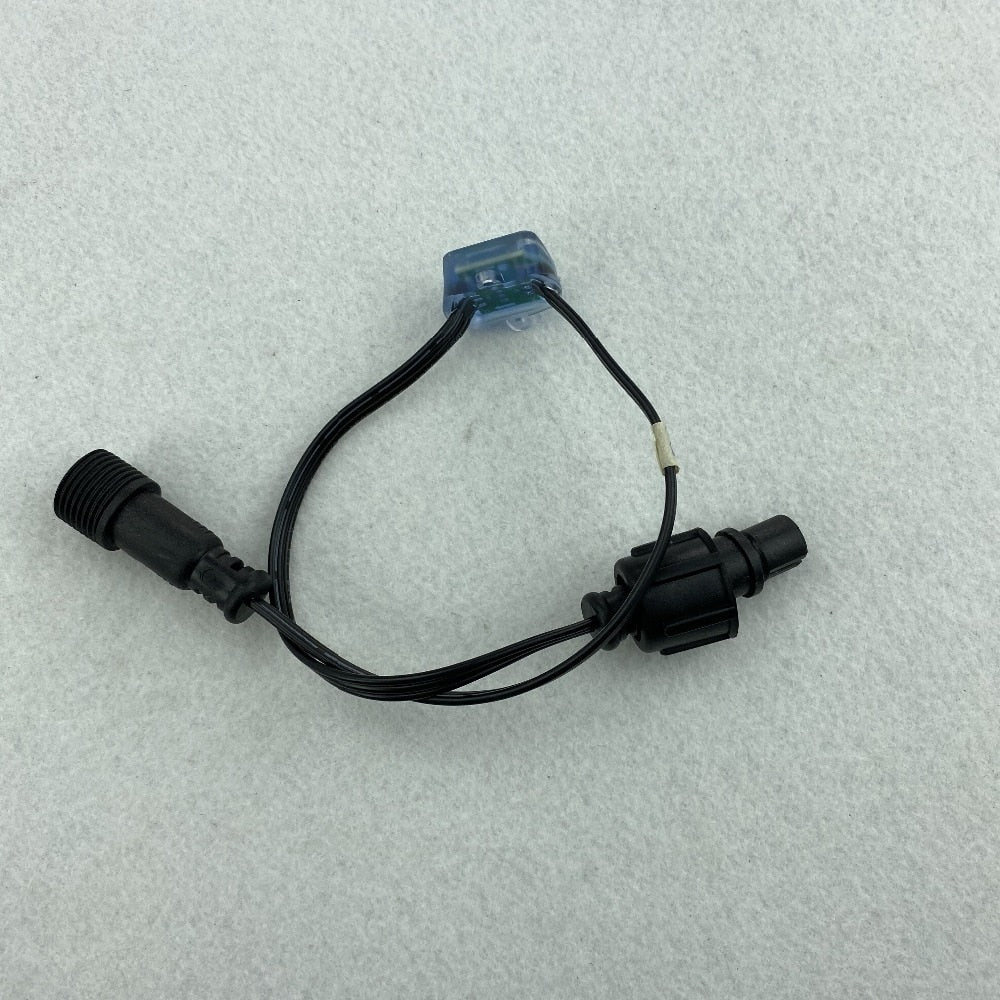

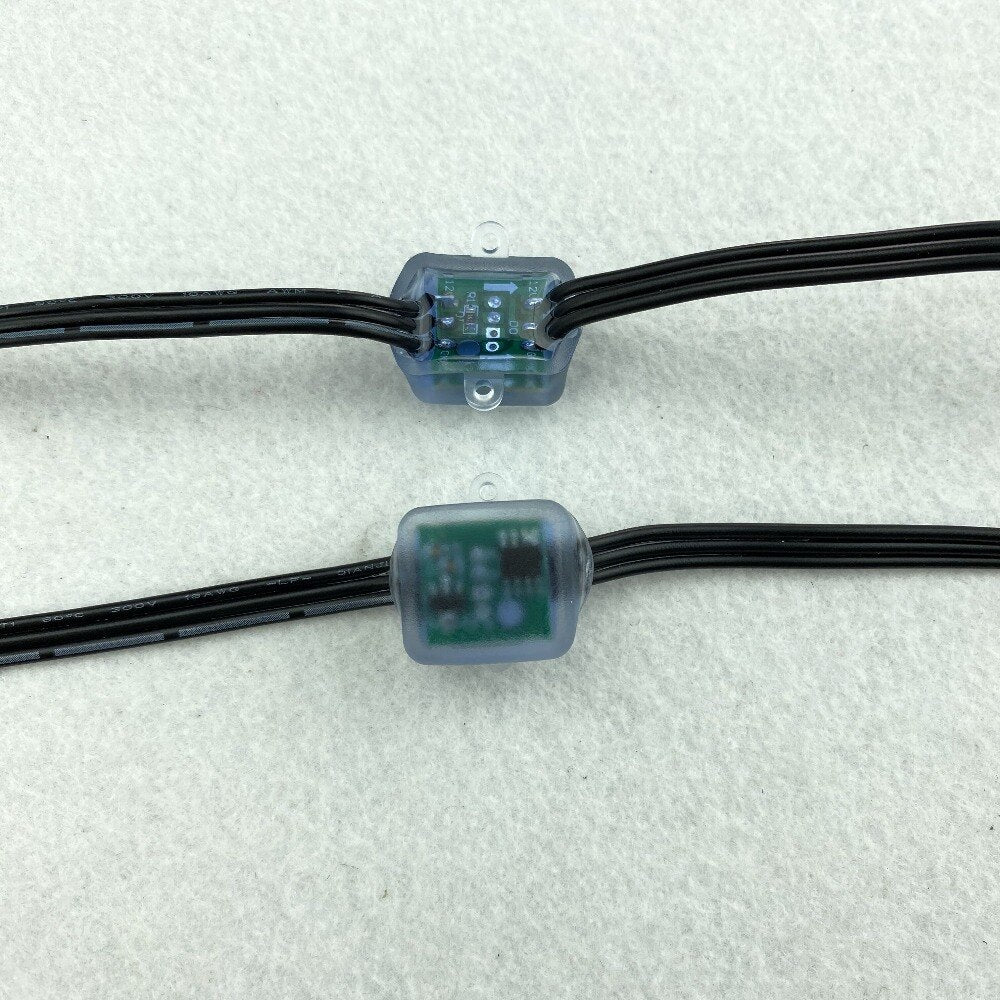

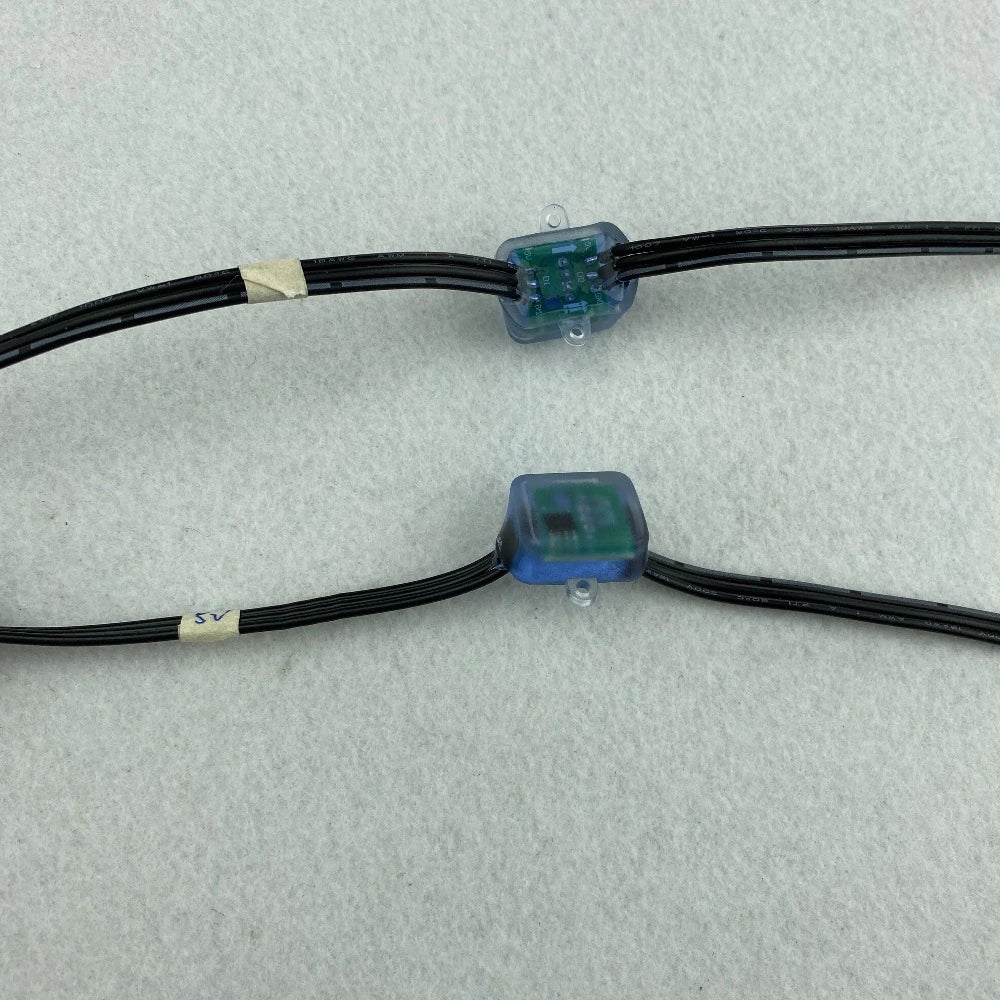

Square type DC5V/DC12V WS2811 "null" pixels to regenerate the data signal with 13.5mm (Ray Wu Style) 3 core black waterproof pigtails.
Input voltage: DC5V/DC12V either(if your pixel is 5V,please choose 5V,12V pixel with 12V null pixel)
Input end: 3 core 13.5mm(ray wu type) type waterproof male connector
Output end: 3 core 13.5mm(ray wu type) type waterproof female connector
Wire: 18AWG 3pin flat all black
IP rating: IP68
For extending distance to first pixel:
Controller ->—3-10m—>-Pixel String
Controller ->—3-10m—>-“Pixel buffer”->—up to 30m cable—>-Pixel String
Controller ->—3-10m—>-“Pixel buffer”->—up to 30m cable—>-“Pixel buffer”->—up to 30m cable—>-Pixel String
For extending distance between pixels:
Controller ->—3-10m—>-Pixel String->—up to 3m cable–>-Pixel String
Controller ->—3-10m—>-Pixel String->—up to 3m cable–>-“Pixel buffer”->—up to 30m cable—>-Pixel String
Controller ->—3-10m—>-Pixel String->—up to 3m cable–>-“Pixel buffer”->—up to 30m cable—>-“Pixel buffer”->—up to 30m cable- –>-Pixel String
